Synthetic Diamond Abrasives

We specialize in all different types of coatings for our synthetic diamond powders — including titanium, nickel and copper coating.

Filter products by







DID 18

Diamond grit for extremely high demands. Blocky, very uniformly cubo-octahedral shaped diamond crystals with extremely high toughness & thermal stability.

Applications

Sawing, Drilling / Mining, Dressing, Cutting

For Diamond Tools: stepped segments for large circular saws, segments for circular saws, drill bits, milling tools, dressing tools.

Sizes

US mesh: 25/30 - 60/70
FEPA: D711 - D251

Work-piece Materials

Granite, Sandstone, Marble, Concrete, Refractories, Asphalt

DID 16

Diamond grit for high demands. Blocky, uniformly cubo-octahedral shaped diamond crystals with very high toughness & thermal stability.

Applications

Sawing, Dressing, Cutting

Stepped segments for large circular saws, segments for circular saws & frame saws, drill bits, milling tools, wire saw beads, band saws, dressing tools.

Sizes

US mesh: 25/30 - 60/70
FEPA: D711 - D251

Work-piece Materials

Granite, Sandstone, Marble, Limestone, Concrete, Asphalt, Refractories, Ceramics, Glass

DID 14

Diamond grit for standard demands. Blocky, mainly uniformly cubo-octahedral shaped diamond crystals with high toughness & thermal stability.

Applications

Sawing, Dressing, Cutting, Electroplating

Segments for circular saws & frame saws, drilling tools, wire saw beads, electroplated tools.

Sizes

US mesh: 25/30 - 60/70
FEPA: D711 - D251

Work-piece Materials

Different kinds of Medium & Soft Stone, Marble, Travertine, Limestone, Slate, Ceramics, Glass & Silicon

DID 12

Diamond grit for standard demands. Blocky diamond grit, sharp-edged grains with rough fracture surfaces & original crystal surfaces.

Applications

Sawing, Dressing, Cutting, Electroplating

Electroplated tools, wire saw beads, free-cutting tools.

Sizes

US mesh: 25/30 - 60/70
FEPA: D711 - D251

Work-piece Materials

Soft stone, Ceramics, Glass, Fiberglass, Reinforced Plastics

DID 9

An excellent combination of reasonably tough diamond & friable diamond particles, with good whole shapes & cubo-octahedral crystals. The impact strength is good for moderate & medium applications.

Applications

Sawing, Dressing, Grinding, Cutting, Electroplating

Highly recommended for Electroplating applications.

Sizes

US mesh: 25/30 - 60/70
FEPA: D711 - D251

Work-piece Materials

Stone, Concrete

DID 1

Designed to be used for very light applications mainly suitable where tool life is not important. However cutting ability is excellent due to broader distribution of shapes.

Applications

Sawing, Dressing, Grinding, Cutting, Electroplating

Highly recommended for electroplating applications & small, 4-inch cutting blades, for stone & concrete. Also recommended as an additive where high diamond concentration is required.

Sizes

US mesh: 25/30 - 60/70
FEPA: D711 - D251

Work-piece Materials

Stone, Concrete

DEV MB 6200 +

Is a premium synthetic diamond for use in metal bond applications. The crystals are blocky & uniformly cubo-octahedral in shape with high impact. Their increased thermal stability & toughness extends the life of the tool & are recommended where high material removal rates are required.

Applications

Grinding, Cutting, Lapping / Polishing, Electroplating

Glass: core-drilling, pencil-edging, Granite & Marble: trimming, polishing, Crystal & Glass: grooving, grinding

Sizes

US mesh: 60/70 - 325/400
FEPA: D251 - D46

Work-piece Materials

Glass, Granite, Marble, Crystal

DEV MB 6200 ++

Finest quality of synthetic diamond for use in metal bond applications. The crystals are well defined cubo-octahedral in shape with lowest levels of internal impurities. Their superior strength & thermal stability enables them to be used where material removal rates are most severe.

Applications

Drilling / Mining, Grinding, Cutting, Lapping / Polishing, Electroplating

Granite & Marble: polishing, Granite & Ceramic Tile: sawing, enhanced pencil-edging, Tungsten Carbide button grinding.

Sizes

US mesh: 60/70 - 325/400
FEPA: D251 - D46

Work-piece Materials

Glass, Granite, Marble, Ceramic Tiles, Crystal

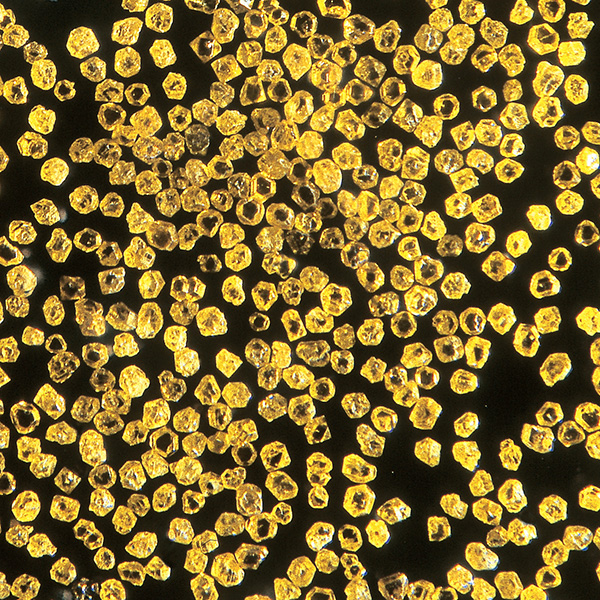

DEV MB 6200

Is an uncoated Synthetic Diamond for use in metal bond applications. The crystals of this material are more blocky than Dev RS6100, but is still designed to give good bond retention & optimum performance.

Applications

Grinding, Cutting, Lapping / Polishing, Electroplating

Glass: edging & beveling, Granite, Marble & Limestone: trimming, polishing, Tungsten Carbide & Cast Iron: grinding

Sizes

US mesh: 60/70 - 325/400
FEPA: D251 - D46

Work-piece Materials

Glass, Granite, Marble, Limestone, Cast-iron

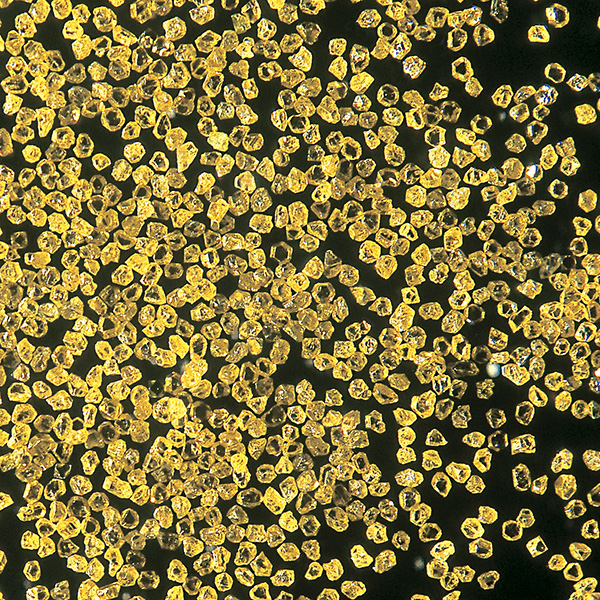

DEV MB 6200 I

Highly recommended for applications where grinding forces are low per crystal. Due to the semi-blocky shape, it provides more free cutting & grinding action, and is recommended for low material removal grinding applications.

Applications

Grinding, Cutting, Lapping / Polishing, Electroplating

Glass: seaming, edging & bevel-polishing, Granite, Marble & Limestone: polishing, Ceramic: dental burrs & cut-off wheels

Sizes

US mesh: 60/70 - 325/400
FEPA: D251 - D46

Work-piece Materials

Glass, Granite, Marble, Limestone, Dental Ceramics, Cast-iron

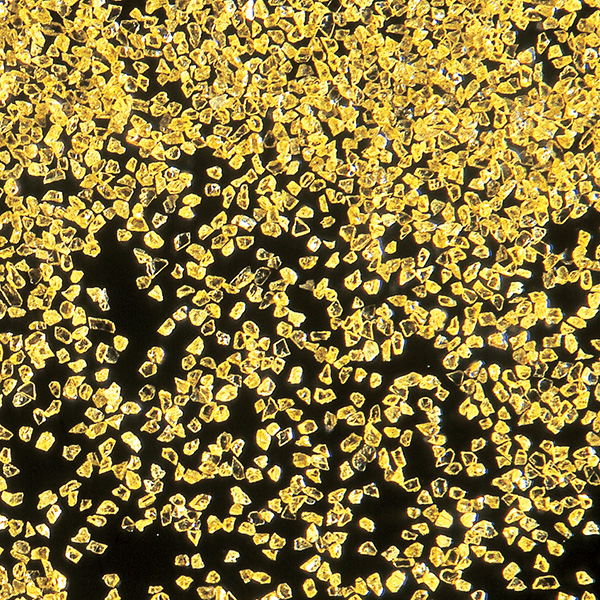

DEV MB 6200 II

Friable, synthetic diamond, recommended for applications where grinding forces are very low. Due to the angular shape of the diamond, it helps to regenerate sharp cutting edges faster. It provides more free cutting & grinding action, and is recommended for low material removing grinding applications.

Applications

Grinding, Cutting, Lapping / Polishing, Electroplating

Glass: bevel polishing, Granite & Marble: polishing, Ceramic: dental burrs & cut-off wheels, finishing & polishing. Highly recommended for electroplating applications

Sizes

US mesh: 60/70 - 325/400
FEPA: D251 - D46

Work-piece Materials

Glass, Granite, Marble, Limestone, Dental Ceramics, Cast-iron

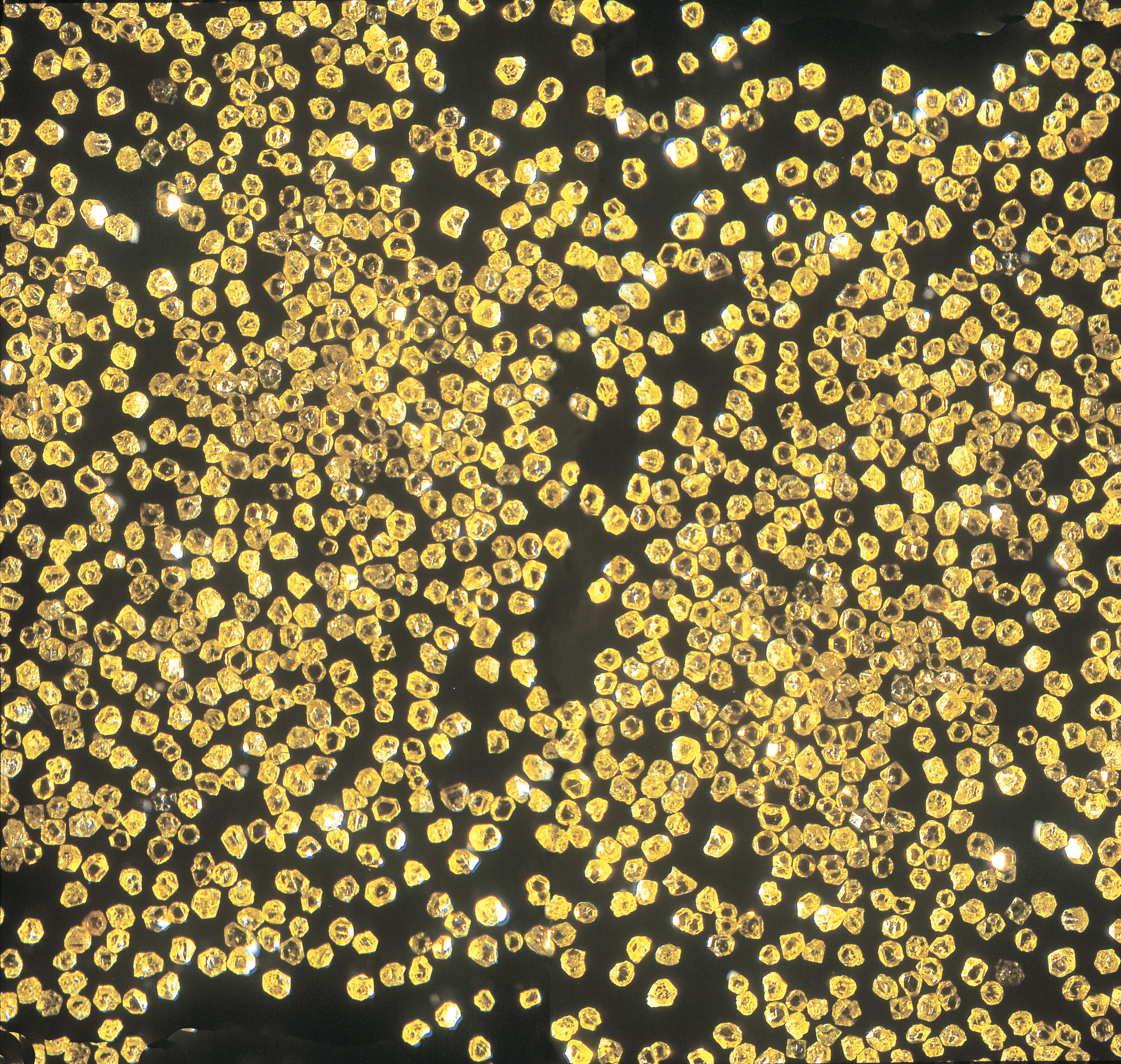

DEV MB 6500

Synthetic micron diamond powder with high standard in regards to both shape & size distribution. Has extremely efficient metal bond retention & the crystals have strong cubo- octahedral shape with efficient cutting edges.

Applications

Lapping / Polishing

Sizes

Available in all micronized grades.

DEV RS 6100

Uncoated, synthetic diamond for use in resin-bond applications. It's high friability ensures controlled breakdown of crystals. Strong bond retention results from it's irregular shape & rough surface area, allowing continuous cutting action.

Applications

Grinding, Cutting

Sizes

US mesh:60/70 - 325/400
FEPA:D251 - D46

DEV RS 6600

Synthetic micron powder consisting of uniformly semi-blocky shaped crystals, friable, ideally suited for resin-bond application.

Applications

Lapping / Polishing

Sizes

Available in all micronized grades

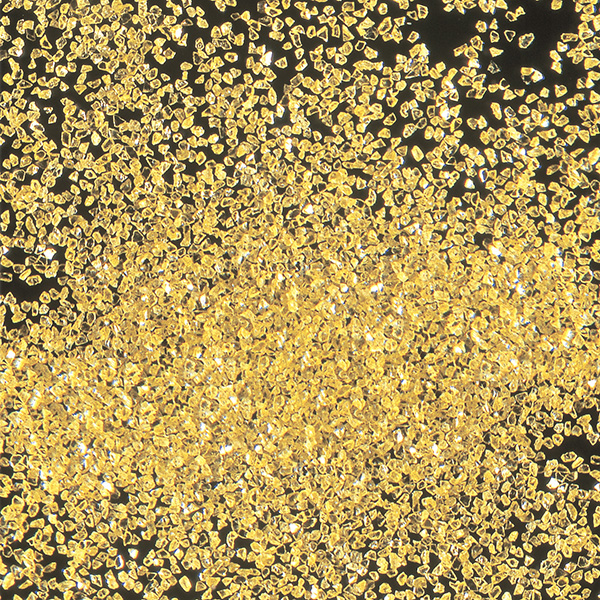

DEV RS 6600 Premium

Synthetic micron powder consisting of uniformly semi-blocky shaped crystals, friable, ideally suited for resin-bond applications

Applications

Lapping / Polishing

Sizes

Available in all micronized grades
